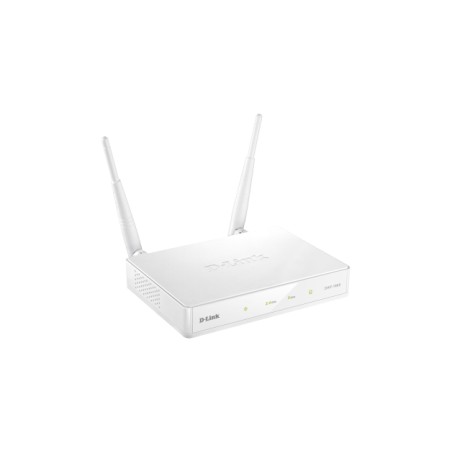

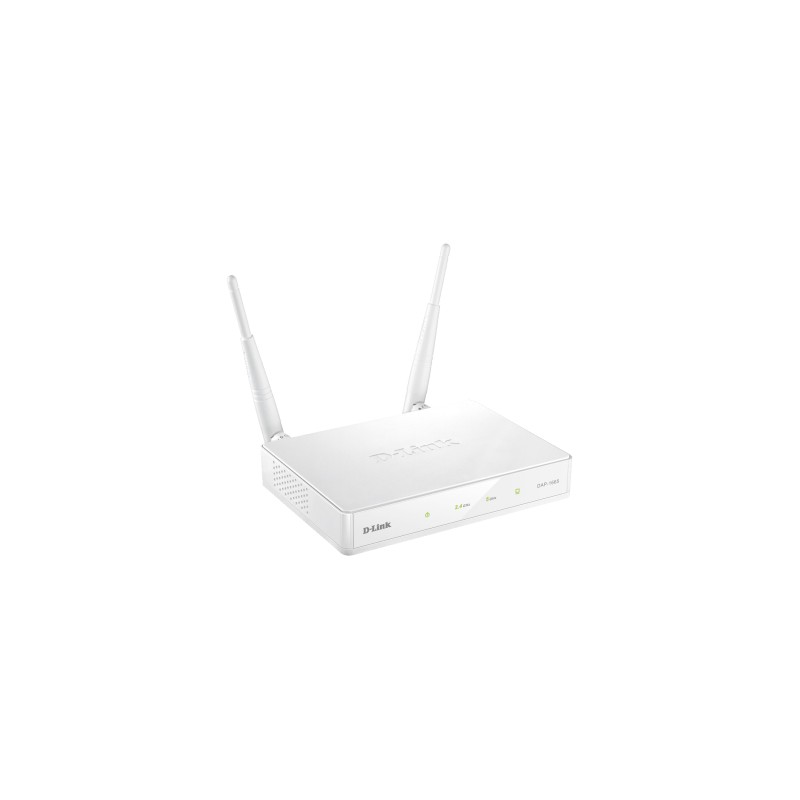

D-Link DAP-1665/BNA — Wireless AC 1200 Dual Band (11a/b/g/n/ac) Router

D-Link Wireless AC 1200 Dual Band (11a/b/g/n/ac) Router, 5dBi detachable antennas, 1 x gigabit port

The DAP-1665 Wireless AC1200 Dual Band Access Point is a fast and versatile solution for bringing wireless AC to an existing wired network, or extending the capabilities of an existing wireless network. The latest 802.11ac technology delivers combined speeds of up to 1200 Mbps, creating a high-speed wireless link between networks for optimized performance and reliable coverage delivering high-quality HD video streaming, gaming and file transfers.

High-Speed Wireless and Wired LAN

The DAP-1665 features the latest 802.11ac wireless technology, capable of delivering combined speeds of up to 1200 Mbps over two bands. Use the 2.4 GHz band’s 300 Mbps for web surfing, email and chat, while simultaneously using the lower-interference 5 GHz band's 867 Mbps for network bridging, downloading, video streaming and file transfers. For wired connections, the Gigabit LAN port enables wired data speeds of up to 1000 Mbps, meaning that Gigabit-compatible wired devices can also benefit from the high speeds of wireless AC.

Versatile Operation Modes

The DAP-1665 can be configured to operate in several modes. Access Point mode allows the device to act as a central hub for wireless users, giving them access to an existing wired network. Bridge-mode creates a high-speed wireless link between two wired networks (LANs), alleviating the need to install additional network cabling. Repeater mode extends wireless coverage of an existing wireless network to cover “dead” spots and reach farther into a business environment. Bridge mode with AP adds the functionality of a wireless access point to a bridged network, so wireless clients can access resources on both networks. Wireless Client mode is available to enable the DAP-1665 to connect to another access point and provide network and Internet access to a remote wired device such as a gaming console or media center.

Full Wireless Security

The DAP-1665 provides WPA/WPA2 security to protect the network and wireless data. This device also supports Wi-Fi Protected Setup (WPS) to quickly and securely set up a secure wireless network. In addition, the access point features MAC address filtering and a disable SSID broadcast function to limit outsiders’ access to the wireless network. The DAP-1665 also features a Kensington security slot so you can protect it against theft.

Features
2.4 GHz	Yes
Maximum data transfer rate	1200 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 2.4835, 5.15 - 5.35, 5.47 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Security
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
MAC address filtering	Yes
Management features
Web-based management	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Power
AC input voltage	12 V
Input current	1 A
Power consumption (typical)	5.18 W
Design
Cable lock slot	Yes
Cable lock slot type	Kensington
Reset button	Yes
LED indicators	Yes
Antenna
Antenna type	External
Antenna features	Detachable antenna
Antennas quantity	2
Antenna gain level (max)	2 dBi
Technical details
Shipping (inner) case length	44.1 cm
Shipping (inner) case width	36 cm
Shipping (inner) case height	30.9 cm
Shipping (inner) case net weight	3.48 kg
Products per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	333.9 kg
Master (outer) cases per pallet (air)	42 pc(s)
Products per pallet (air)	420 pc(s)
Pallet gross length	120 cm
Pallet gross width	110 cm
Pallet height (air)	198.9 cm
Pallet gross weight (sea)	333.9 kg
Master (outer) cases per pallet (sea)	42 pc(s)
Products per pallet (sea)	420 pc(s)
Pallet height (sea)	198.9 cm
Shipping (inner) case gross weight	7.51 kg
Certificates
Certification	CE FCC TELEC IC Wi-Fi Certified VCCI
Weight & dimensions
Width	147 mm
Depth	108 mm
Height	27.8 mm
Weight	222 g
Packaging data
Package width	208 mm
Package depth	274 mm
Package height	68 mm
Package weight	669.4 g
Packaging content
AC adapter included	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	85176990
