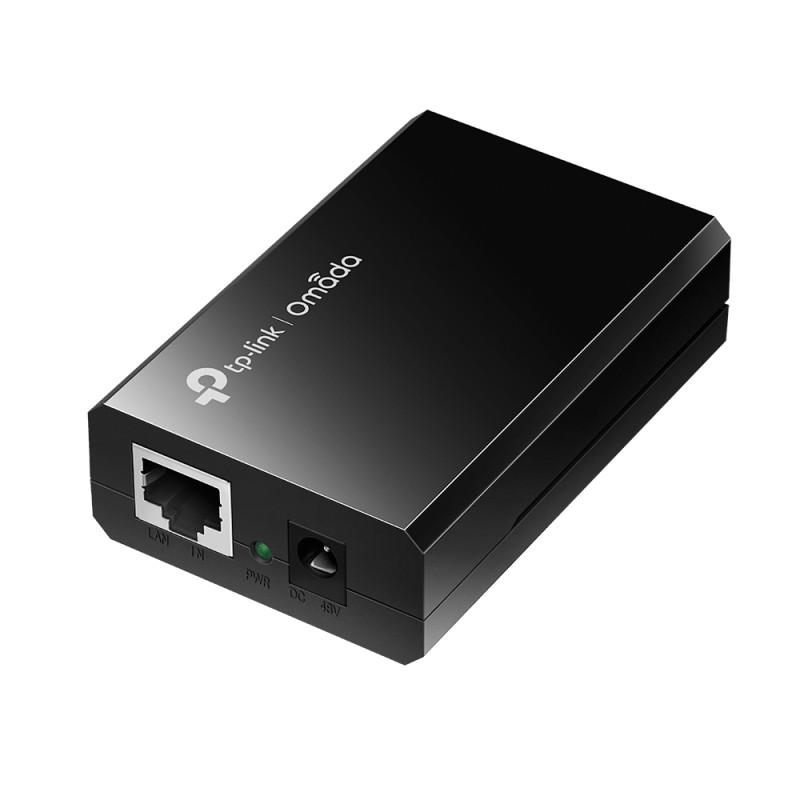

TP-Link POE150S — Omada PoE Injector

Omada PoE Injector

The PoE Injector POE150S (TL-POE150S) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Network
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000
Power over Ethernet (PoE)	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Features
Product colour	Black
Plug and Play	Yes
Maximum operating distance	100 m
LED indicators	Yes
Auto-sensing	Yes
Auto-negotiation	Yes
Ports & interfaces
RJ-45 input ports	1
RJ-45 output ports	1
DC-in jack	Yes
Power
Input voltage	48 V
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	80.8 mm
Depth	54 mm
Height	24 mm
Packaging content
Number of products included	1 pc(s)
AC adapter included	Yes
Quick installation guide	Yes
Packaging data
Package width	65 mm
Package depth	198 mm
Package height	65 mm
Package weight	350 g
