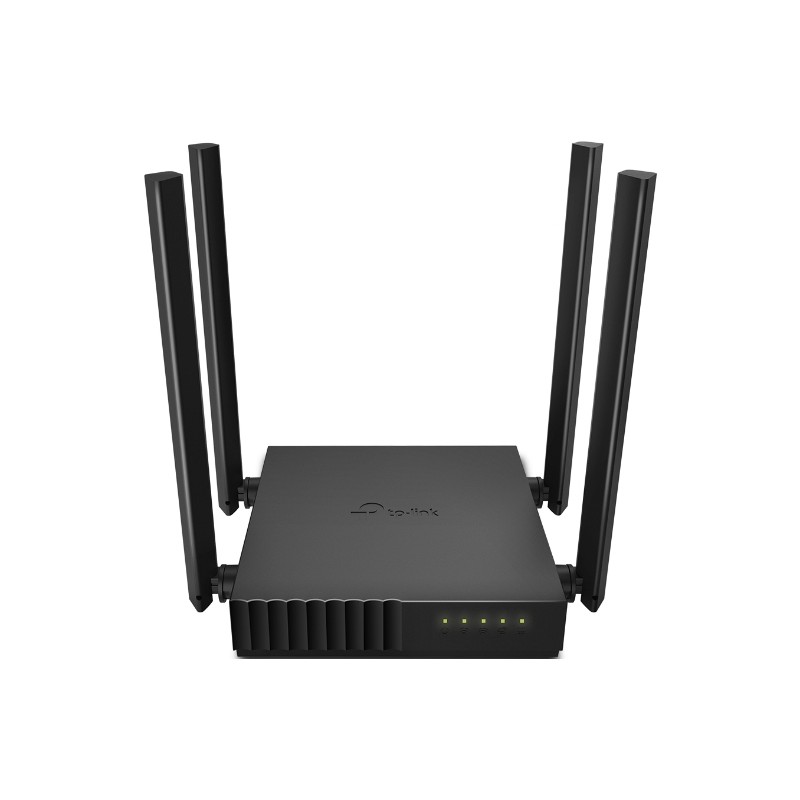

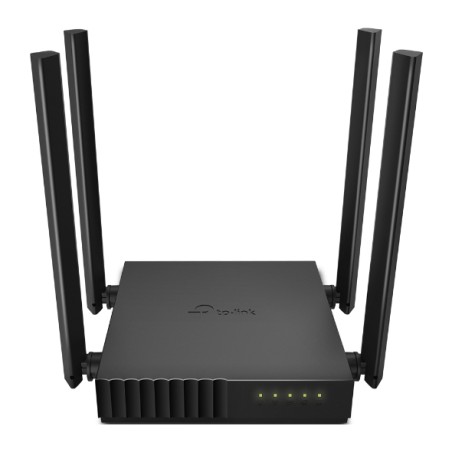

TP-Link Archer C54 — AC1200 Dual Band Wi-Fi Router

AC1200 Dual Band Wi-Fi Router

Fast Dual-Band WiFi
Dual-band Wi-Fi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides a far-reaching, stable connection to the rest of your devices.

Boosted Signal throughout Your Home
Access your entertainment from every corner of your home with 4 external high-performance antennas. Beamforming technology detects devices and concentrates wireless signals towards them, even if they are far away or low-powered.

Talk to Devices Simultaneously
Equipped with MU-MIMO technology to connect more devices and maintain low latency. Concurrent streamings on 2 different MU-MIMO devices now will just be smooth as connecting only one, as long as you have enough bandwidth from your ISP.

Router Mode (Default)
Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices.

Access Point Mode
Transform your existing wired network into a wireless one.

Range Extender Mode
Boost the existing wireless coverage in your house.

Versatile Management
Easily manage your home network with versatile built-in tools, including Parental Controls, Guest Network, QoS, and more.

WAN connection
Ethernet WAN	Yes
DSL WAN	Yes
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	867 Mbit/s
WLAN data transfer rate (second band)	300 Mbit/s
Network
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
Management features
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes
MU-MIMO technology	Yes
Security
Security algorithms	WEP, WPA, WPA2, WPA2-Enterprise
Firewall	Yes
Access Control List (ACL)	Yes
Stateful Packet Inspection (SPI)	Yes
DMZ support	Yes
Protocols
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Design
Product colour	Black
Product type	Tabletop router
Antenna
Antenna design	External
Antennas quantity	4
Power
Power source type	AC
Output voltage	9 V
Output current	0.85 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	115 mm
Depth	106.7 mm
Height	24.3 mm
