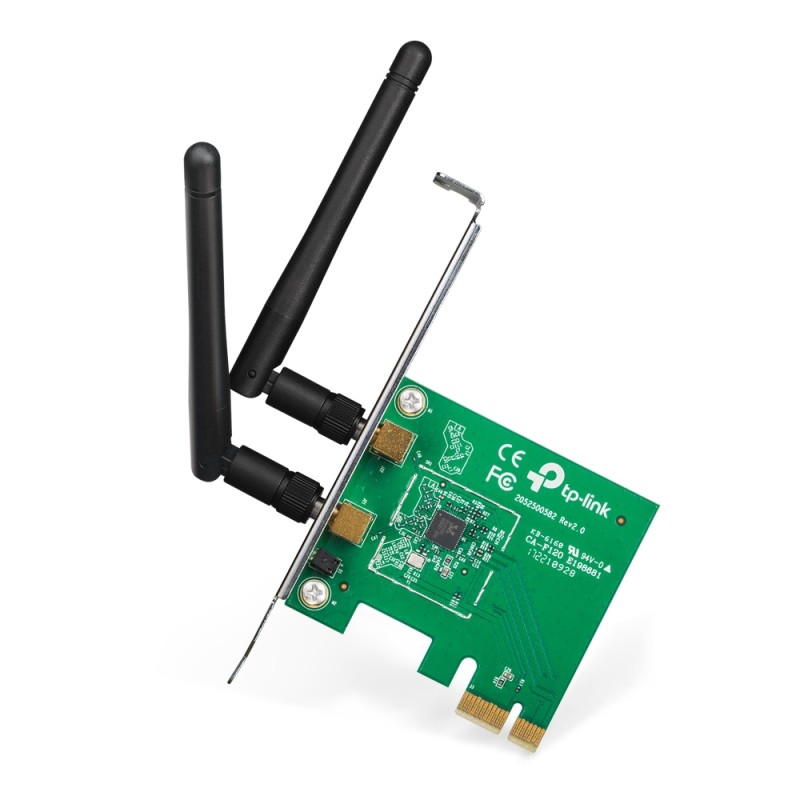

TP-Link TL-WN881ND — 300Mbps Wireless N PCI Express Adapter

TP LINK 300Mbps Wireless N PCI Express Adapter

What This Product Does
Wireless N PCI Express 2.0(x1) Adapter TL-WN881ND allows you to connect a desktop computer to a wireless network and access high-speed Internet connection. Comply with IEEE 802.11n, they provide wireless speed up to 300Mbps, which is beneficial for the online gaming or even HD video streaming.

Wireless N - Speed & Range
MIMO (multiple input, multiple output antennas) technology, it shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

CCA Technology - Stable Wireless Signals
Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhanced the wireless performance.

WPA / WPA2 Encryptions
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.

Easy Setup
Either using the optimized user interface and setup wizard or the CD (included) setup wizard will allow you to get ‘online’ quickly and easily.

Ports & interfaces
Connectivity technology	Wireless
Host interface	PCI Express
Interface	WLAN
Network
Maximum data transfer rate	300 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Frequency range	2.4 - 2.4835 GHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported	11,54,150,300 Mbit/s
Modulation	16-QAM, 64-QAM, DBPSK, DQPSK, OFDM
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPS
Design
Component for	PC
Product colour	Green
Internal	Yes
Antenna	Yes
Antenna design	External
Antenna connector type	RP-SMA
Antenna direction type	Omni-directional
Antenna gain level (max)	2 dBi
LED indicators	Yes
Operating modes	Infrastructure mode
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	59.7 mm
Depth	51 mm
Height	3.3 mm
Packaging data
Package width	201.5 mm
Package depth	152.5 mm
Package height	41.5 mm
Package weight	170 g
Packaging content
Resource CD	Yes
Quick installation guide	Yes
Technical details
Compliance certificates	RoHS, Federal Communications Commission (FCC), CE
Logistics data
Harmonized System (HS) code	85176990
