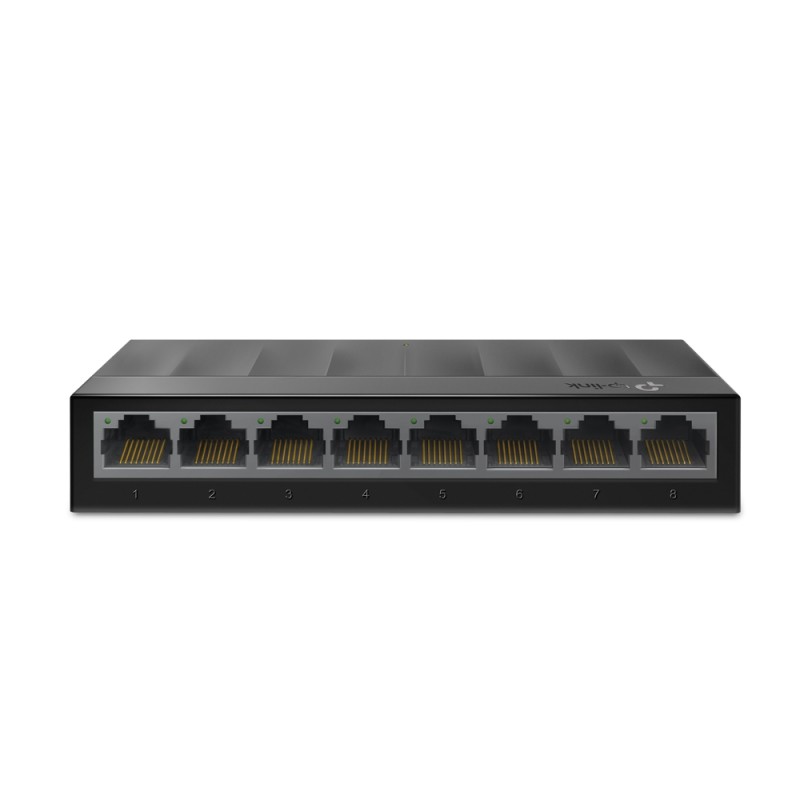

TP-Link LS1008G — 8-Port Gigabit Desktop Switch

TPLINK 8-Port Gigabit Desktop Switch

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Gigabit Ports For Faster Speeds
Increase the speed of your network with the LS1008G 8-port Gigabit desktop switch. Non-blocking, 8× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

Use Where You Need, However You Need
The LS1008G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Data transmission
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
MAC address table	4000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	16000
Packet buffer memory	1.5 MB
Design
Product colour	Black
Housing material	Plastic
Wall mountable	Yes
Power
Power supply included	Yes
DC input voltage	5 V
Input current	0.6 A
Power consumption (max)	3.9 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	13.299 BTU/h
Weight & dimensions
Width	127 mm
Depth	66.5 mm
Height	23 mm
Packaging content
Quick start guide	Yes
Packaging data
Package type	Box
Logistics data
Harmonized System (HS) code	85176990
