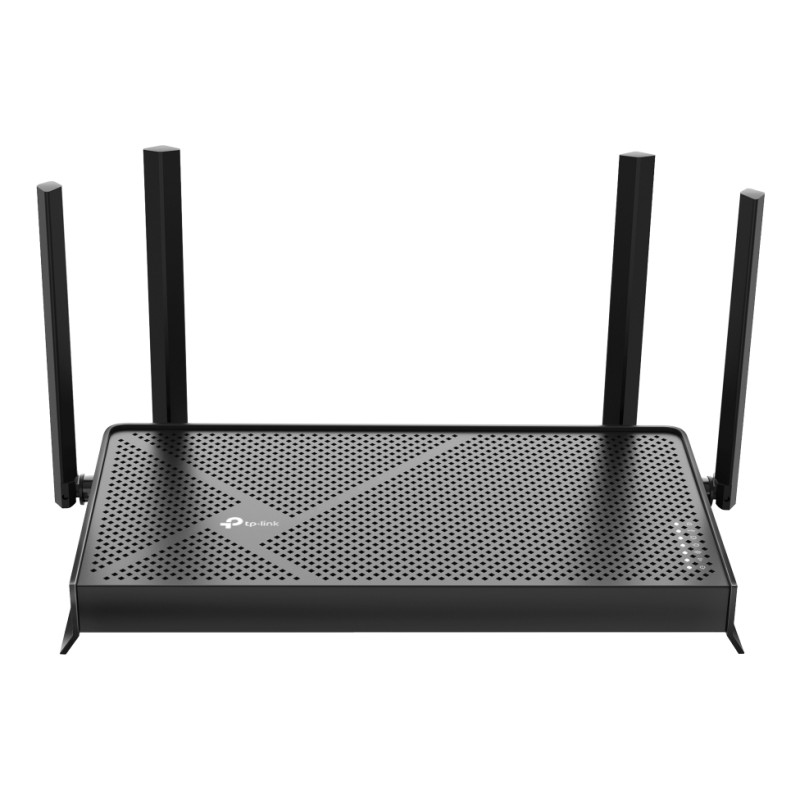

TP-Link Archer BE230 — BE3600 Dual-Band Wi-Fi 7 Router

BE3600 Dual-Band Wi-Fi 7 Router

Exploring the New Era of Home WiFi
BE3600 Dual-Band Wi-Fi 7 Router

Next-Level Experience Realized with 3.6 Gbps WiFi 7
Powered by Wi-Fi 7 technology, Archer BE230 delivers an incredible wireless rate of up to 3.6 Gbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

2.5 Gigabit Wired Connections
1× 2.5 Gbps WAN port and 1× 2.5 Gbps LAN port make full use of the Gigabit speeds from your local ISP. Breakthrough the 1G bottleneck and drive your devices to peak performance.

USB 3.0 Ports
Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.

Boosted WiFi Coverage Throughout Your Home
4× high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.

Flexibly Create Whole Home Mesh WiFi
Archer BE230 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE230 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.

Setup Got Easier than Ever
Install the Tether app and simply follow the on-screen directions. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.

WAN connection
Ethernet WAN	Yes
WAN connection type	RJ-45
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN data transfer rate (max)	2882 Mbit/s
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN data transfer rate (first band)	2882 Mbit/s
WLAN data transfer rate (second band)	688 Mbit/s
Modulation	4096-QAM, OFDMA
Network
Ethernet LAN	Yes
Ethernet LAN interface type	2.5 Gigabit Ethernet
Ethernet LAN data rates	1000,2500 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
Support Samba (storage)	Yes
Built-in FTP server	Yes
Media server	Yes
VPN support	• OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server
Ports & interfaces
Ethernet LAN (RJ-45) ports	5
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Management features
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes
MU-MIMO technology	Yes
Number of data streams	4x4
Security
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Firewall	Yes
Guest access	Yes
Access Control List (ACL)	Yes
Parental control	Yes
DDoS protection	Yes
IP address filtering	Yes
DMZ support	Yes
Protocols
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Design
Product colour	Black
On/off switch	Yes
Product type	Tabletop router
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Antenna
Antenna design	External
Antennas quantity	4
Features
Works with Amazon Alexa	Yes
Works with the Google Assistant	Yes
Firmware upgradeable	Yes
Power
Power source type	AC
Output voltage	12 V
Output current	1.5 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
