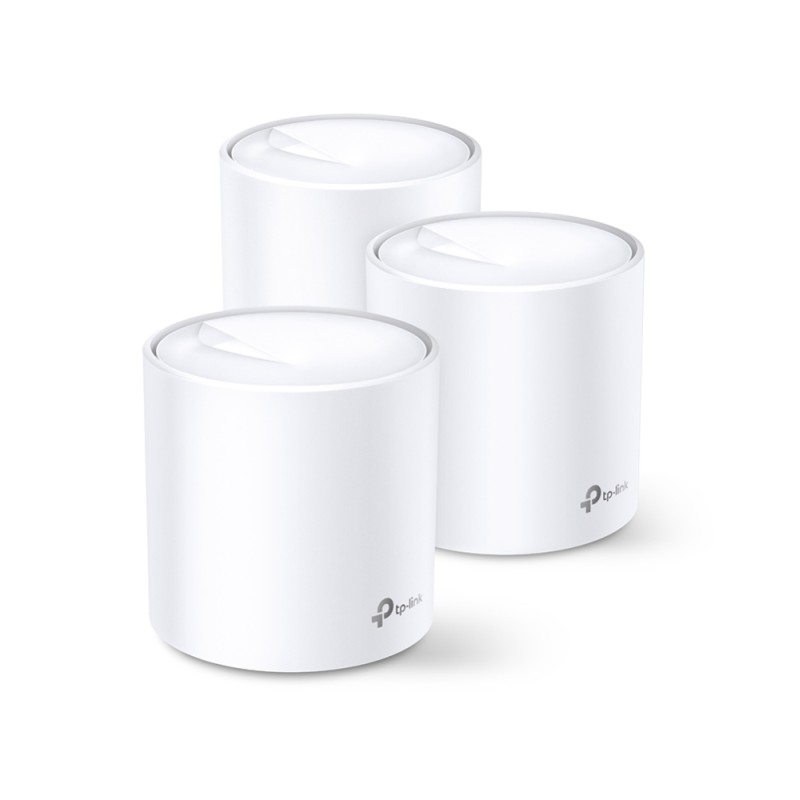

TP-Link Deco X20(3-pack) — AX1800 Whole Home Mesh Wi-Fi System

TP LINK AX1800 Whole Home Mesh Wi-Fi System

Advanced Mesh Powered by Wi-Fi 6
Armed with Wi-Fi 6 technology, Deco whole home mesh Wi-Fi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.

Wi-Fi Dead Zone Killer
With clearer and stronger signals enhanced by BSS Color and Beamforming, Deco X20 boosts broader whole home Wi-Fi up to 5,800 ft2 (3-pack).† Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another Deco.

True Seamless Roaming for Greater Experiences
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.

More Connections for Immersive Streaming
Enjoy a more efficient network with 4× the average throughput on connected devices in dense environments thanks to Wi-Fi 6 technology△. Deco X20 is tested to connect over 150 devices without dragging down performance.

Faster Wi-Fi 6 Speed = No Wait
The latest 1024-QAM and higher symbol rate combines to boost speeds up to 1.8 Gbps—ideal for bandwidth-intensive tasks like cloud gaming and 4K UHD video. Families will enjoy immersive live-streaming with flawless video and clear audio without buffering.

Greatly Reduced Lag, More Fun
Wi-Fi 6 brings stable and responsive Wi-Fi connections to tomorrow's hyper-connected home. Enjoy more responsive gaming and seamless video chatting even when multiple compatible devices are connected and transmitting data at the same time

Setup Just Got a Lot Easier
Unbox Deco, install the app and then simply follow the on-screen directions. Deco app will take care of the rest, getting your network up and running in minutes.

Design
Product type	Mesh system
Product colour	White
LED indicators	Power
Antenna type	Internal
Antennas quantity	4
Transmit power	FCC: <30 dBm, CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Reset button	Yes
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1775 Mbit/s
WLAN data transfer rate (first band)	1201 Mbit/s
WLAN data transfer rate (second band)	574 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security algorithms	WPA-PSK, WPA2-PSK, WPA3
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
Guest access	Yes
Features
Built-in processor	Yes
Processor cores	4
Quality of Service (QoS) support	Yes
Firewall security	SPI
DHCP client	Yes
DHCP server	Yes
Parental control	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Ethernet WAN	Yes
DC-in jack	Yes
Power
AC input voltage	100-240 V
AC adapter input current	0.4 A
AC input frequency	50-60 Hz
AC adapter output voltage	12 V
AC adapter output current	1 A
Certificates
Compliance certificates	CE, RoHS
Certification	FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	110 mm
Depth	110 mm
Height	114 mm
Packaging content
Number of products included	3 pc(s)
AC adapter included	Yes
Number of units included	3 pc(s)
Ethernet cable	Yes
Packaging data
Package width	369 mm
Package depth	276.5 mm
Package height	125 mm
Package weight	2.25 kg
Logistics data
Harmonized System (HS) code	85176990
