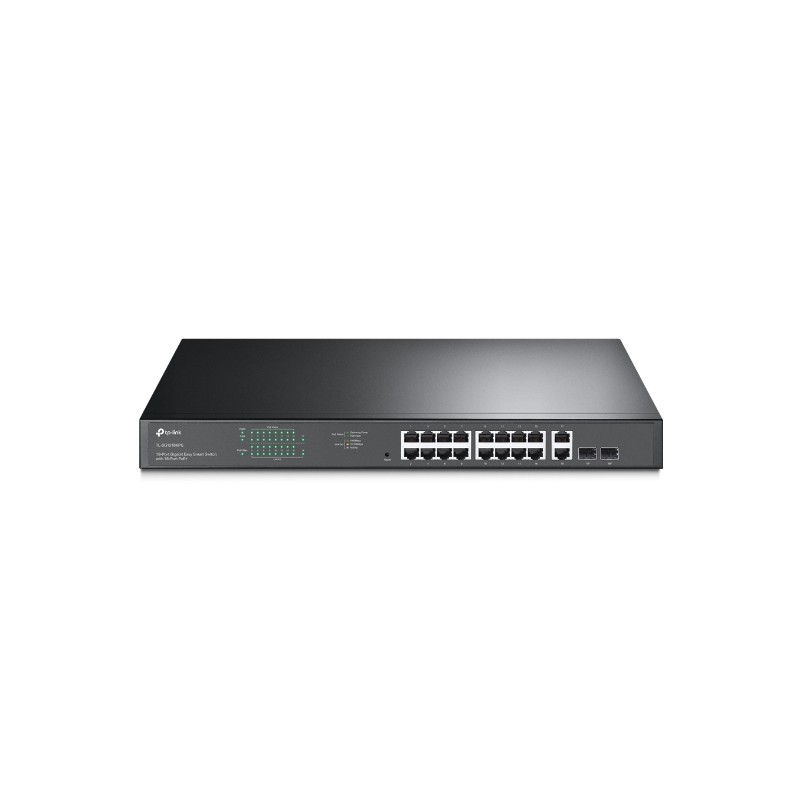

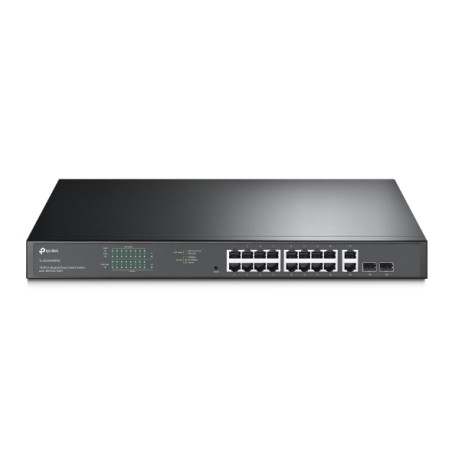

TP-Link TL-SG1218MPE — 18-Port Gigabit Easy Smart Switch with 16-Port PoE+

TPLINK 18-Port Gigabit Easy Smart Switch with 16-Port PoE+

Professional High Power 18-Port Gigabit Easy Smart Switch with 16-Port PoE+
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Multiple Application Scenarios
The TL-SG1218MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	18
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	18
Combo SFP ports quantity	2
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Number of VLANs	32
Optical fiber
Fiber ethernet cabling technology	1000BASE-X
Data transmission
Switching capacity	36 Gbit/s
Forwarding rate	26.78 Mpps
MAC address table	8000 entries
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4.1 MB
Security
IGMP snooping	Yes
Security algorithms	SNMP, SNMPv2, SNMPv3
Loop protection	Yes
Design
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	2 fan(s)
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
Power consumption (max)	296.3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet plus (PoE+) ports quantity	16
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	741.15 BTU/h
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Cables included	AC
User guide	Yes
Rack mount kit	Yes
Certificates
Certification	CE, FCC, RoHS
Logistics data
Harmonized System (HS) code	85176990
