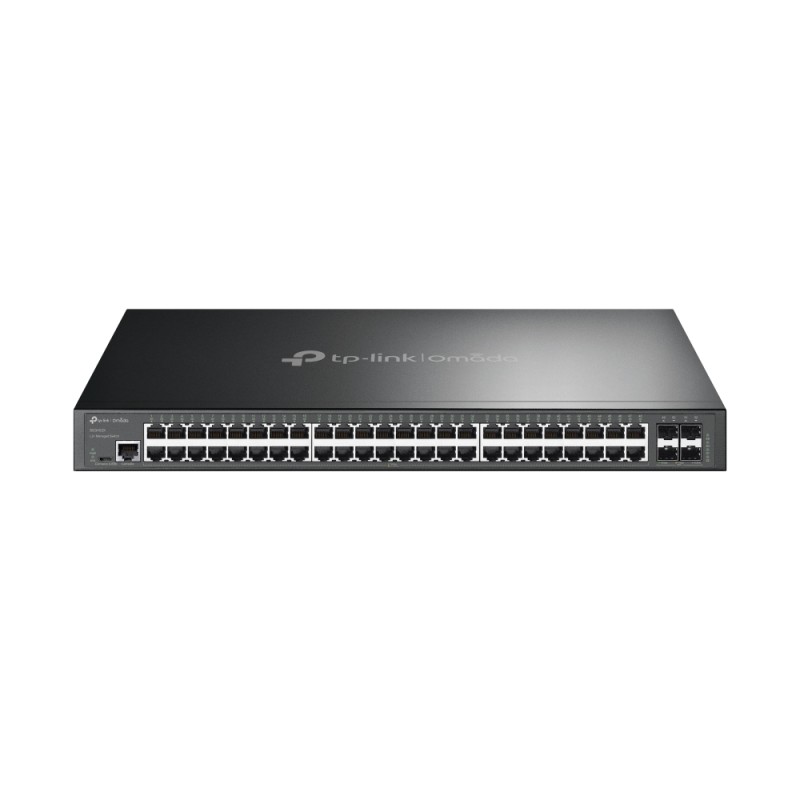

TP-Link SG3452X — Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Tp-link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Management features
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Public MIB	Y
Huawei-proprietary MIB	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Console port	RJ-45/Micro-USB
Power connector	AC-in jack
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
10G support	Yes
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
IPv4 routes	48
IPv6 routes	48
VLAN support	Yes
Virtual LAN features	Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs	4000
Data transmission
Switching capacity	176 Gbit/s
Forwarding rate	130.9 Mpps
MAC address table	16000 entries
Static route	Yes
Number of static routes	48
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	12 MB
Security
DHCP features	DHCP client, DHCP relay, DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
IGMP proxy	Yes
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Authentication	Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Password protection	Yes
Authentication type	AAA, RADIUS, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Y
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	0 fan(s)
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	32.72 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	111.65 BTU/h
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm
Packaging content
Cables included	AC
Quick start guide	Yes
Rack mount kit	Yes
Packaging data
Rack rails	Yes
Package type	Box
Certificates
Certification	CE, FCC, RoHS
