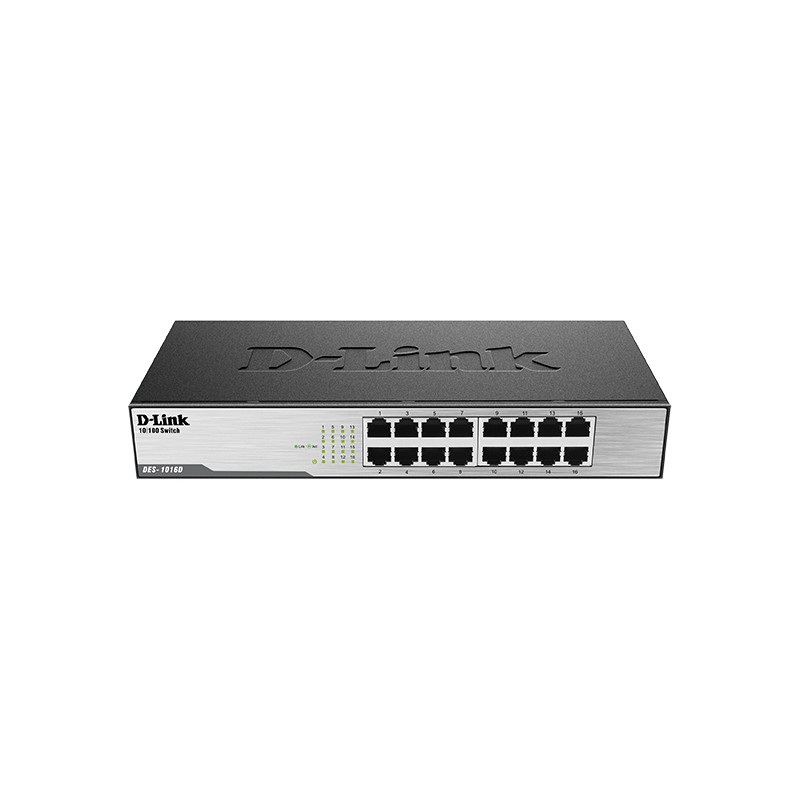

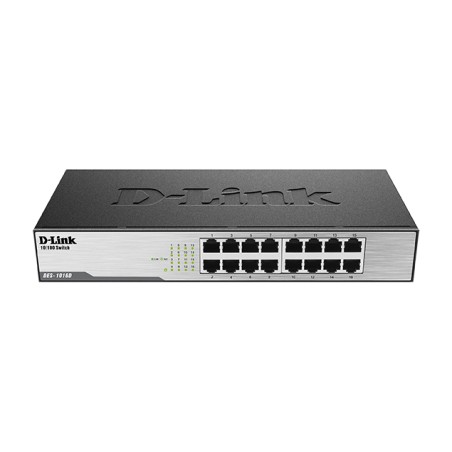

D-Link DES-1016D/B — 16-port 10/100Mbps Unmanaged standalone switch (Rack)

D-Link 16-port 10/100Mbps Unmanaged standalone switch (RACK)

With the D-Link 16-Port Fast Ethernet Unmanaged Switches, you can easily expand your business or home network by adding more computers and devices, each achieving speeds up to 200 Mbps per port in full-duplex mode. Quickly and securely connect employees working in small offices with one another and with all of the servers, printers, and other devices they use.

With the D-Link 16-Port Fast Ethernet Unmanaged Switches, you can easily expand your business or home network by adding more computers and devices, each achieving speeds up to 200 Mbps per port in full-duplex mode. Quickly and securely connect employees working in small offices with one another and with all of the servers, printers, and other devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive.

Expand and Upgrade Your Network

The DES-1016D switch offers an economical way for SOHO and small to medium businesses (SMB) to benefit from high-speed networking. It provides twenty-four ports for easy expansion of your network and a quick way to upgrade your network to Fast Ethernet connectivity. The switches speed file transfer times, improve slow and sluggish networks, keep your vital business applications available, and help your employees respond more quickly to customers and each other.

Conserve Energy

The DES-1016D switch helps you conserve energy through IEEE802.3az EEE, which works when both the switch and its link partner are EEE-compliant devices. This power-saving feature automatically puts the switch into a low-power idle state when the switch utilization is zero, allowing you to lower your energy usage and save on your energy costs.

Designed with the Environment in Mind

The DES-1016D switch uses recyclable packaging that helps reduce waste, complying with the WEEE directive. It’s innovatively designed to run cool and quiet without sacrificing performance.

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Network
Networking standards	IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100 Mbit/s
Auto-sensing	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
Data transmission
Switching capacity	3.2 Gbit/s
MAC address table	8000 entries
Store-and-forward	Yes
Maximum data transfer rate	0.2 Gbit/s
Packet forwarding rate (100 Mbps)	148.8 pps
Packet forwarding rate (10 Mbps)	14.88 pps
Protocols
Supported network protocols	CSMA/CD
Design
Product colour	Black
LED indicators	Activity, Link, Power
Performance
Internal memory	2 MB
Mean time between failures (MTBF)	492.096 h
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	2.1 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	7.1652 BTU/h
Weight & dimensions
Width	280 mm
Depth	150 mm
Height	44 mm
Weight	1.06 kg
Packaging data
Package width	282 mm
Package depth	376 mm
Package height	78 mm
Package weight	1.8 kg
Technical details
Shipping (inner) case height	31.1 cm
Shipping (inner) case width	39.2 cm
Shipping (inner) case length	42 cm
Shipping (inner) case net weight	9 kg
Products per shipping (inner) case	5 pc(s)
Pallet gross weight (air)	253.9 kg
Master (outer) cases per pallet (air)	24 pc(s)
Products per pallet (air)	120 pc(s)
Pallet gross length	120 cm
Pallet gross width	110 cm
Pallet height (air)	137.9 cm
Pallet gross weight (sea)	372.3 kg
Master (outer) cases per pallet (sea)	36 pc(s)
Products per pallet (sea)	180 pc(s)
Pallet height (sea)	2 m
Shipping (inner) case gross weight	9.87 kg
Certificates
Compliance certificates	BSMI, CB, CCC, CE, Federal Communications Commission (FCC), ICES, Low Voltage Directive (LVD), RCM, VCCI, cUL
Logistics data
Harmonized System (HS) code	85176990
