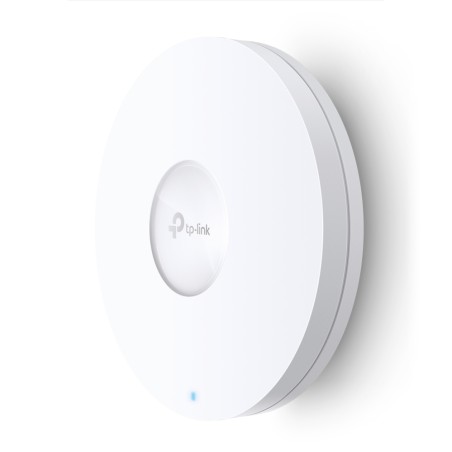

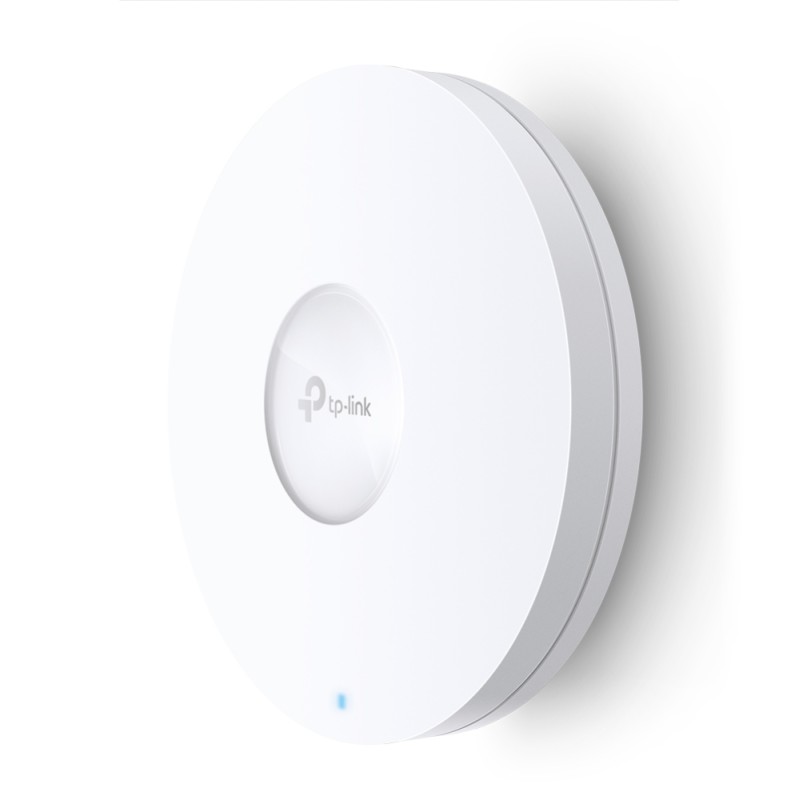

TP-Link EAP660 HD — AX3600 Wireless Dual-Band Multi-Gigabit Ceiling Mount Access Point

TPLINK AX3600 Wireless Dual-Band Multi-Gigabit Ceiling Mount Access Point

Ultra-High Performing
AX3600 Enterprise Wireless for
High-Density Environments

High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO** increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before.

Blazing Fast Speed with 8 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band)†. With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Optimized Wired Performance with 2.5 GE PoE+ Port
Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.

Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.△ This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Boost Network Efficiency in All Aspects
With Rich Advanced Features

Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance
ensures large numbers of users have smooth network experiences in high-density business networks

Airtime Fairness
Increases average network throughput in heavily congested environments

Features
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	1148 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Ethernet LAN data rates	25000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel selection	Yes
Automatic channel scanning	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Yes
Wi-Fi roaming	Yes
VLAN support	Yes
Rate limiting	Yes
Wireless isolation	Yes
Airtime Fairness (ATF)	Yes
Quality of Service (QoS) support	Yes
Security
Security algorithms	WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Remote Authentication Dial-In User Service (RADIUS)	Yes
Management features
Web-based management	Yes
Syslog	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Power
Power over Ethernet (PoE)	Yes
Output voltage	12 V
Output current	2 A
Design
Placement	Ceiling
Product colour	White
Antenna
Antenna type	Internal
Weight & dimensions
Width	243 mm
Depth	243 mm
Height	64 mm
Packaging content
Mounting kit	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Harmonized System (HS) code	85176990
