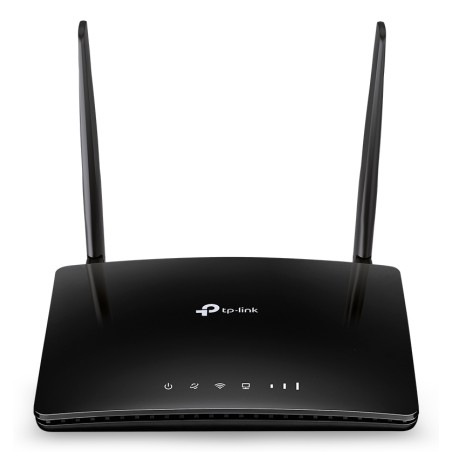

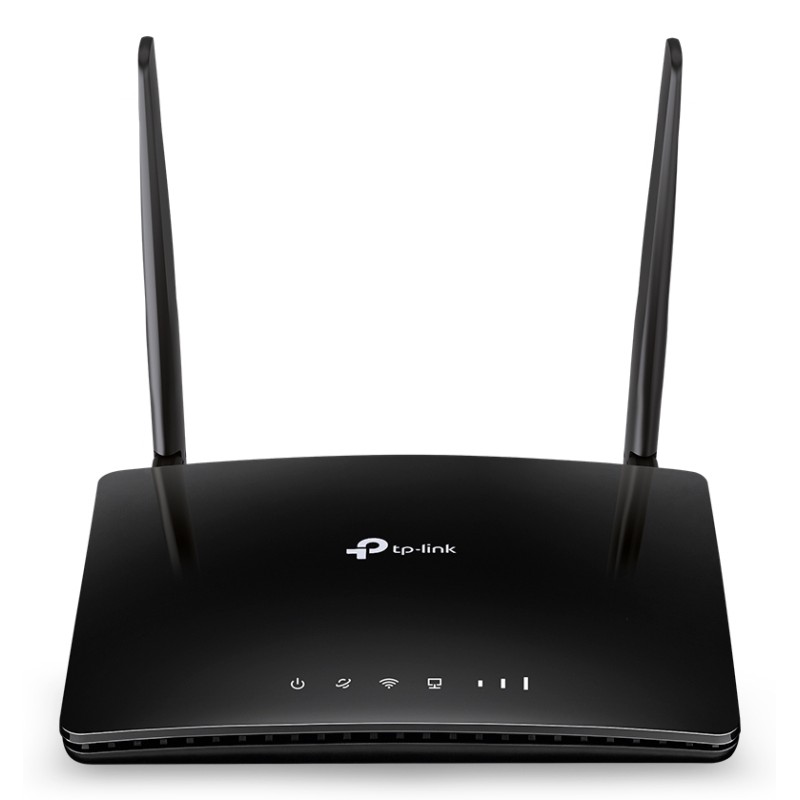

TP-Link Archer MR402 — AC1200 Wireless Dual Band 4G LTE Router

AC1200 Wireless Dual Band 4G LTE Router

4G LTE with AC1200 Wi-Fi to Stream from Everywhere
AC1200 Wireless Dual Band 4G LTE Router Archer MR402

Got SIM Card?
Then Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a nano SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Share Your 4G LTE Network
Take full of advantage of your cutting-edge 4G LTE network for download speeds of up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.

Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a nano SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.

Internet Access for
up to 64 Devices Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.

Support TP-Link OneMesh
Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effec

Available WAN Connection
The WAN/LAN port enables Archer MR402 to work as a traditional wireless router that is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.

Easy Setup and Management
Set up the Archer MR402 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

WAN connection
Ethernet WAN	Yes
SIM card slot	Yes
3G/4G USB modem compatibility	Yes
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Network
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
VPN support	PPTP VPN, OpenVPN
Receiver sensitivity	5 GHz: 11a 54M: -77 dBm 11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm 11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm 11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm 2.4 GHz: 11g 54M: -74.5 dBm 11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm 11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm
Mobile network
Mobile network generation	4G
3G standards	HSPA, UMTS
4G standard	LTE-TDD & LTE-FDD
4G bands supported	700,800,850,900,1800,2100,2300,2500,2600 MHz
3G bands supported	850,900,2100 MHz
SIM card type	NanoSIM
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes
Management features
Wi-Fi Multimedia (WMM)/(WME)	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes
Security
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Firewall security	DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
Access Control List (ACL)	Yes
Schedule access	Yes
Parental control	Yes
Protocols
DHCP client	Yes
DHCP server	Yes
Supported network protocols	IPv4, IPv6
Design
Product colour	Black
Product type	Tabletop router
Certificates
Compliance certificates	CE, RoHS
Packaging content
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes
Antenna
Antenna design	External
Antennas quantity	2
Detachable antenna(s)	Yes
Transmit power	23 dBmW
Power
Power source type	DC
Output voltage	12 V
Output current	1 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
System requirements
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Weight & dimensions
Width	174 mm
Depth	124.5 mm
Height	33.5 mm
Packaging data
Package type	Box
Number of products included	1 pc(s)
