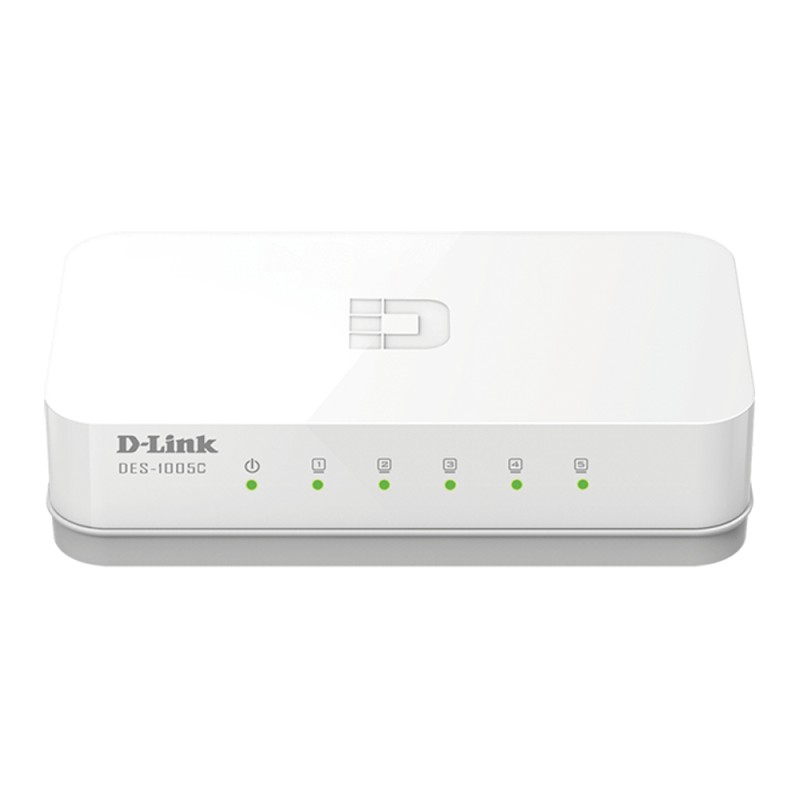

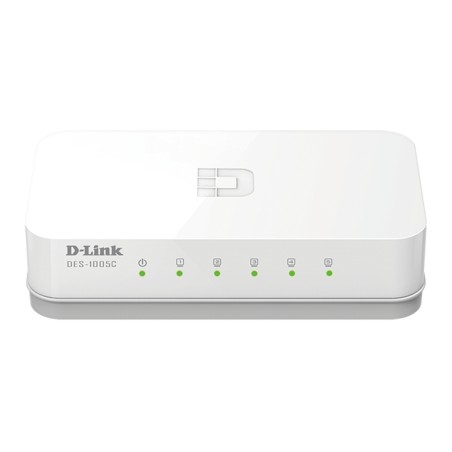

D-Link DES-1005C — 5-port 10/100Mbps Unmanaged standalone switch (Desktop)

D-Link 5-port 10/100Mbps Unmanaged standalone switch (DESKTOP)

Fast Networking Made Easy
With data transfer speeds of up to 200 Mbps at full duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover makes connection a cinch; just plug in your cables and you’re ready to go.

Economical, Plug-and-play Networking Switch
The DES-1005C 10/100 Mbps Unmanaged Switch is an economical, plug-and-play networking switch for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Fast Ethernet. It gives you five 10/100 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Conserve Energy
The DES-1005C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.

Reliable Plug and Play Installation
The DES-1005C is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power connector	DC-in jack
Network
Networking standards	IEEE 802.2, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100 Mbit/s
Auto-negotiation	Yes
Data transmission
Switching capacity	1 Gbit/s
Forwarding rate	0.74 Mpps
MAC address table	2000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffer memory	0.093 MB
Design
Form factor	Desktop
Product colour	White
LED indicators	Activity, Link, Power, Speed
Performance
Fanless	Yes
Mean time between failures (MTBF)	1785631 h
Power
Power source	DC
DC input voltage	5 V
Input current	0.55 A
Power consumption (max)	0.784 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	0.406 BTU/h
Weight & dimensions
Width	88 mm
Depth	48 mm
Height	21.4 mm
Weight	43.4 g
